Description

Electric bicycle conversion kit bafang bbs01 mid drive motor electric bike kit

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

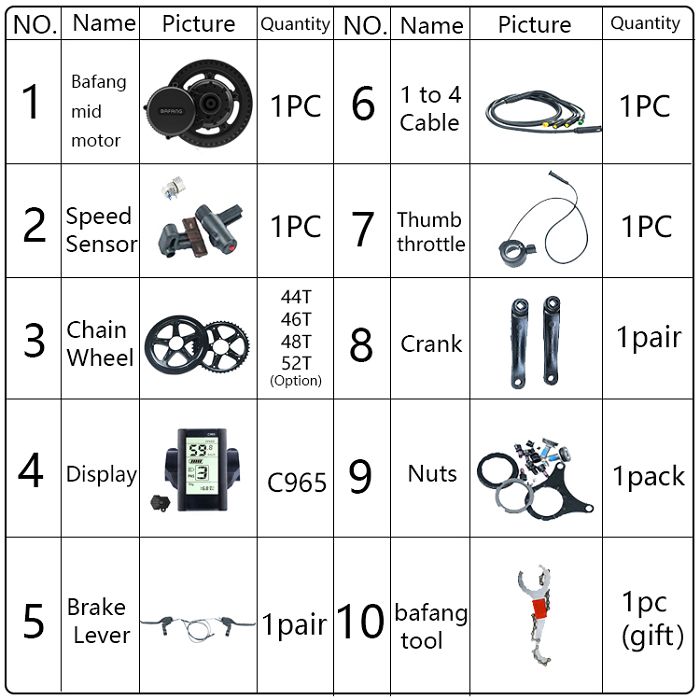

Product list

Product Paramenters

Motor	36v 250w

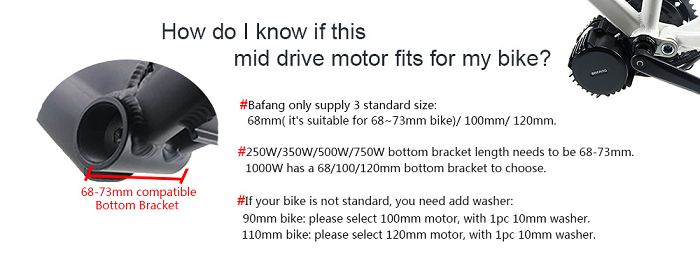

Bracket bottom length	68mm
No Load Speed(RPM)	83-87
Load Speed(RPM)	78-83
MAX Torque	80 N.m
Efficiency (%)	≥ 80 %

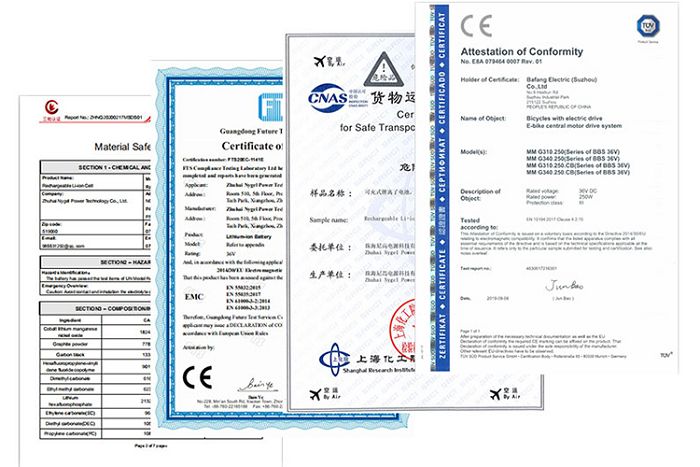

Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	8
Package size	250-750W: 322525cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

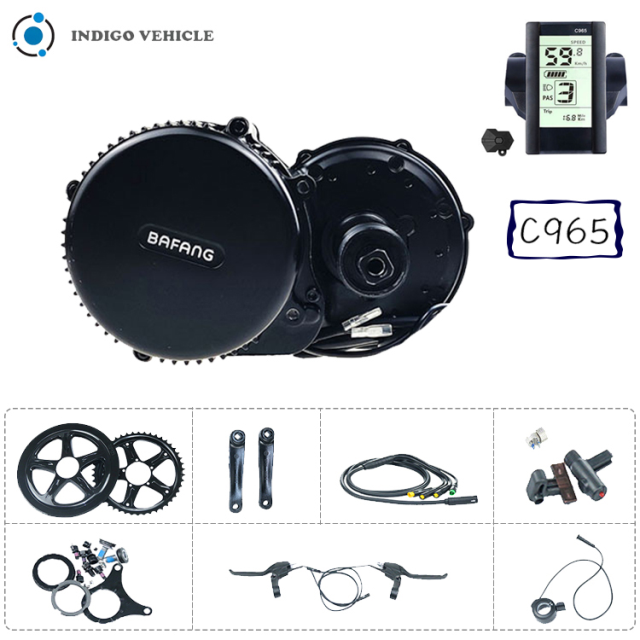

Electric bike kit

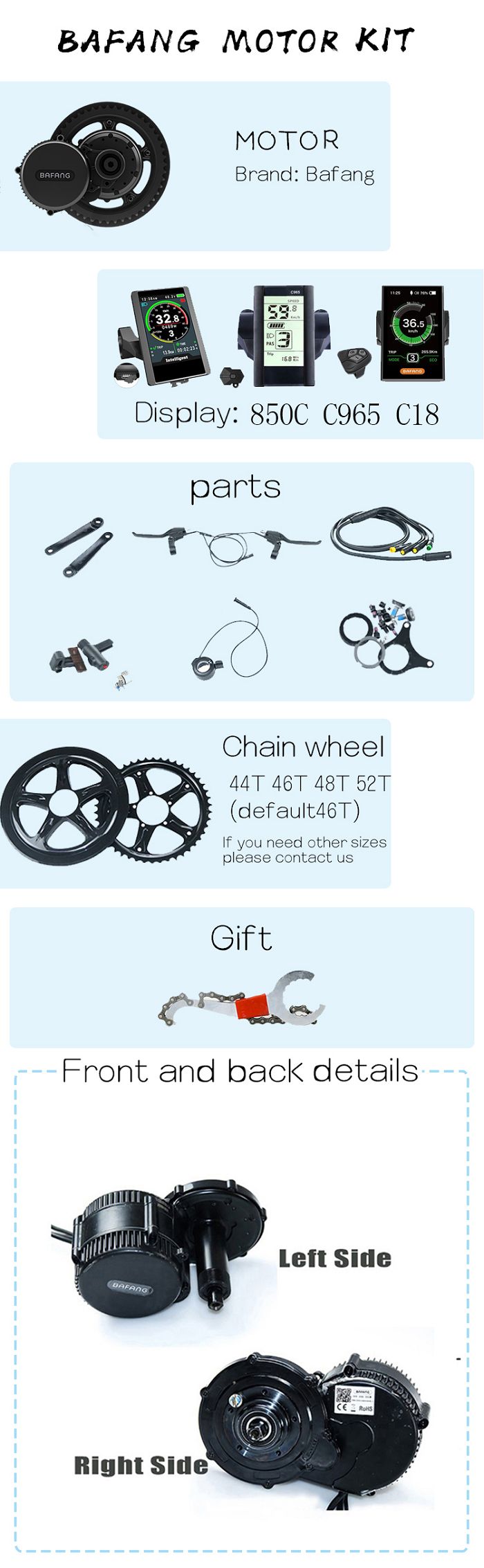

Details Images

Overview of our main production equipment

The main production equipment of our factory is at the international advanced level of the same period, and the standard is Class A. The equipment used to process the main products mainly includes:

1. Machining motor shells mainly include machining centers, flexible production lines, turning centers, pentahedral processing machines, CNC vertical eight-sided milling, CNC lathes, CNC milling machines, small horizontal machining centers, etc.

2. The main processing motor rotors are CNC vertical lathe, CNC double-sided lathe, multi-function punching machine, high-speed punching machine, wire tying machine, automatic cutting machine, CNC milling machine, CNC dynamic balancing machine, etc.

3. The main processing motor coils include wire film welding production line, CNC flat winding machine, automatic tape machine, AC and DC forming machine, etc.

4. The main processing electric control cabinets are CNC punching machine, CNC bending machine, automatic spraying production line, CNC shearing machine, automatic argon arc welding machine and so on.

The mid motor usually drives the rear wheels through a chain or gear drive to drive the vehicle forward. Normally, a mid-mounted motor of the same power can amplify the output torque with the help of a mechanical structure.
