Description

Electric bicycle conversion kit bafang bbs01 mid drive motor electric bike conversion

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

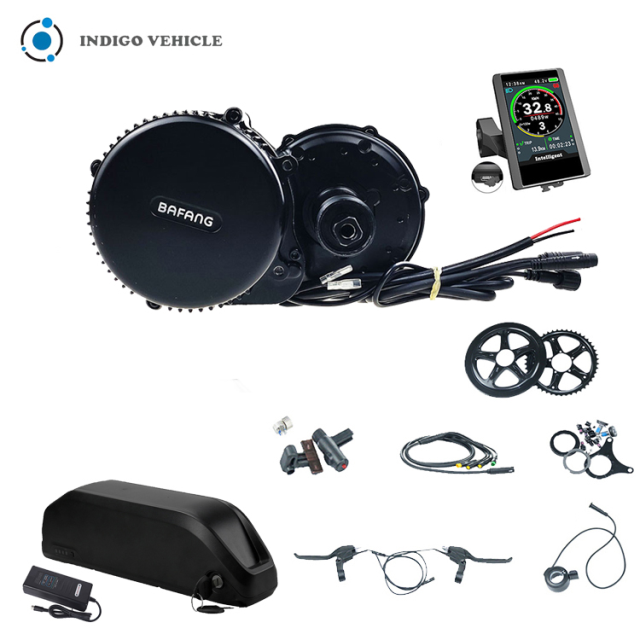

Product list

c18(001)

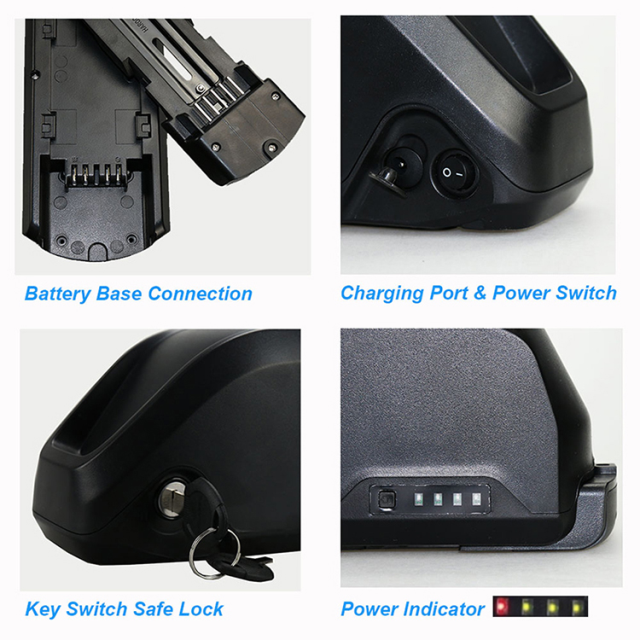

1.Lithium Battery

36V:10.4AH-CN/13AH-CN/14.5AH-Samsung/15.6AH-CN /17.4AH-Hailong/19.2AH-LG/24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable (Bullet interface)

Product Paramenters

Motor	36v 350w
Bracket bottom length	68mm
No Load Speed(RPM)	83-87
Load Speed(RPM)	78-83
MAX Torque	80 N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	3689096/113/141mm

Electric bike conversion

Details Images

The company focuses on the development and production of lithium-ion high-speed motors, spiral steel teeth. Technical research and development has been carried out for the deceleration system. All display products adopt a spiral tooth structure. This structure ensures that the number of meshing teeth is not less than two at any time, improves meshing, increases strength, reduces gear wear, reduces gear noise, and extends the life of the motor. The essential improvement.

We will ship the goods within 7 days, usually 1-3 days. For customers who require delivery from the European warehouse, the products can be received quickly. Customers in other countries will also arrange delivery as soon as possible, or choose a designated express delivery according to customer requirements.

Mid electric bicycles are designed from the overall, top-level, and people-oriented. Mainly lightweight structure, simple shape, low-span oblique curved beam (very convenient to get on and off), stable riding and high efficiency of the whole vehicle. The biggest advantage of a mid-mounted electric bicycle is that its battery, motor and transmission box are all located near the center axis of the bicycle. Therefore, its center of gravity is well balanced, low center of gravity, and low unbalanced resistance during riding, especially when riding without electricity is as easy as a bicycle (built-in gearbox, gear-sprocket combined reduction clutch, maximizing the use of bicycle standards Pieces)
