Electric Bike Conversion

Motor

36V350W

Display

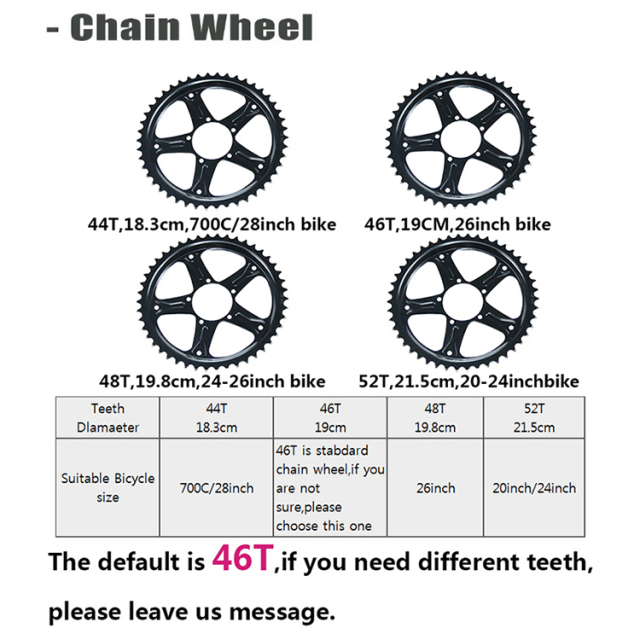

Chain Wheel

Battery

36V10.4AH
36V13AH
36V14.5AH
36V15.6AH
36V19.2AH
36V24.5AH

Lots: $339/ Piece

Wholesale Price ( Piece ):

Quantity:

Piece

Shipping to

Description

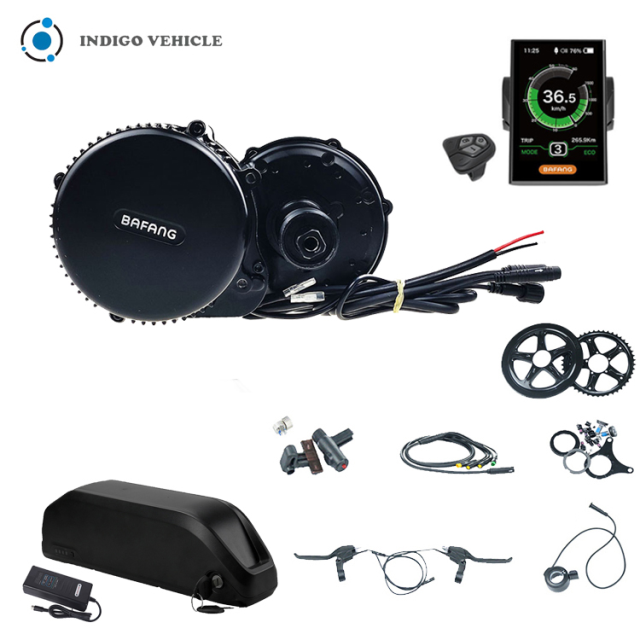

Electric bicycle conversion kit bafang bbs01 mid drive motor electric bike conversion

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

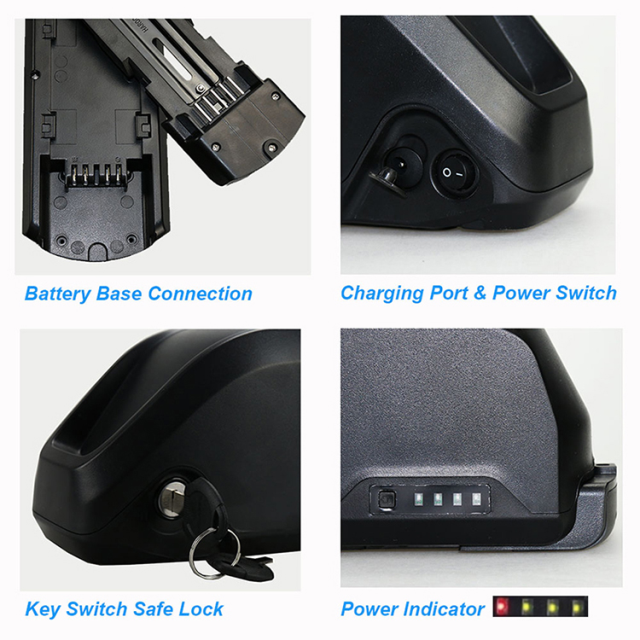

1.Lithium Battery

36V:10.4AH-CN/13AH-CN/14.5AH-Samsung/15.6AH-CN /19.2AH-LG/24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable (Bullet interface)

Product Paramenters

Motor	36v 350w
Bracket bottom length	68mm
No Load Speed(RPM)	83-87
Load Speed(RPM)	78-83
MAX Torque	80 N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452545cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	3689096/113/141mm

Electric bike conversion

Details Images

The middle motor is installed on the bottom bracket of the frame, and the battery/controller is installed on the down tube. This makes the center of gravity of the bicycle very low and centered.

Hangzhou Indigo Vehicle has established a recognized supplier of green energy products, such as electric bicycles, lithium battery packs, electric bicycle motors, hub motors, electric scooters, various drive controllers and motors. We insist on using high-quality materials and the latest technology in our products to provide high-performance, feature-rich and low-cost solutions for personal electric transportation products and industrial applications.

We always keep our research and development too make our products perfect. What we always going after is: Save energy, Protect envirement and benefit the mankind.
