Description

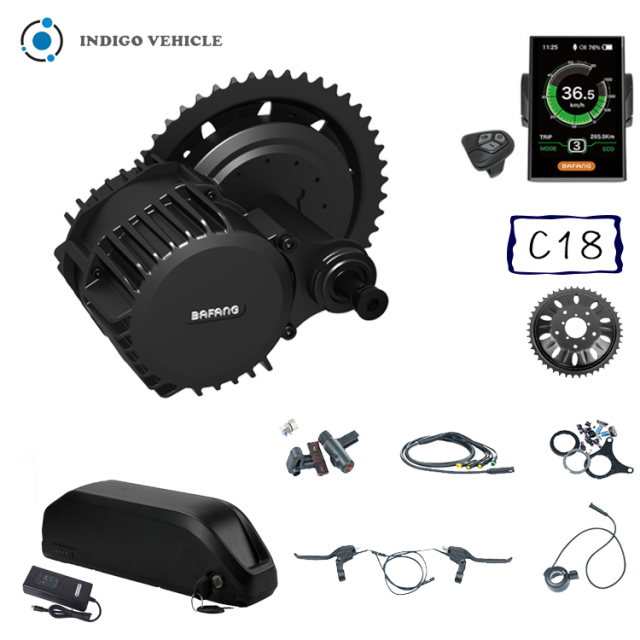

Electric bicycle conversion kit bafang bbshd mid drive motor e bike motor

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

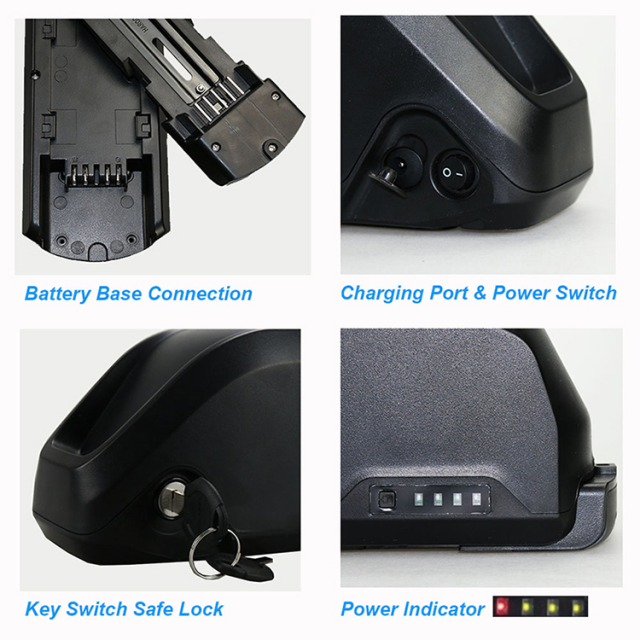

1.Lithium Battery

48V:13AH-CN/16AH-LG/17.5AH-Samsung/17.5AH-CN/20.3AH-Samsung/24.5AH-Samsung

52V:17.5AH-Samsung/21AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 1000w

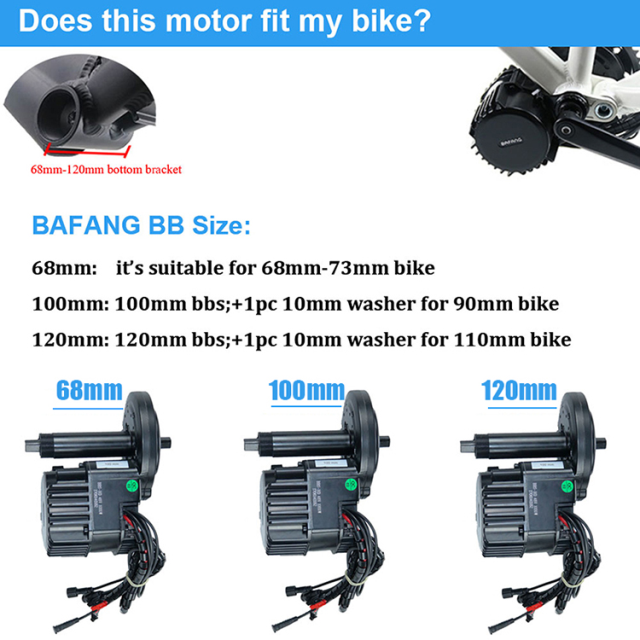

Bracket bottom length	68/100/120mm
No Load Speed(RPM)	160
Load Speed(RPM)	140-150
MAX Torque	160N.m
Efficiency (%)	≥ 85%
Certificate	ROHS,CE
Operating Temperature	-20-45℃
chain wheel	42T 46T available
Gross weight(kg)	15
Package size	802530cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	3689096/113/141mm

E bike motor

Details Images

The development of the company depends on the product, the guarantee of the product depends on the quality, but ultimately depends on the software -- people. Therefore, improving the quality of employees is inevitable. In the new century, there are new challenges; In the new era, there are also new opportunities, we should make full preparations to seize them. The company needs a team of innovative spirit, for the company to constantly surpass themselves, do better and stronger escort!

This mid motor system places the power output source at the center of the bicycle and adopts a concentric shaft output structure, which retains the most traditional transmission system of the bicycle. It not only places the motor in the most reasonable middle part in terms of the weight distribution of the whole vehicle, but also improves the overall The structure of the vehicle and the safety during riding, and when equipped with a rear-wheel transmission system, it effectively improves the climbing ability of the vehicle.

We have professional warehouse management personnel and packing personnel. Our warehouse management system can refresh the order data in real time. The staff will respond quickly, pack your goods, and deliver them to the express company or transportation company.
