Electric bicycle conversion kit bafang bbshd mid drive motor electric kits for bicycles

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

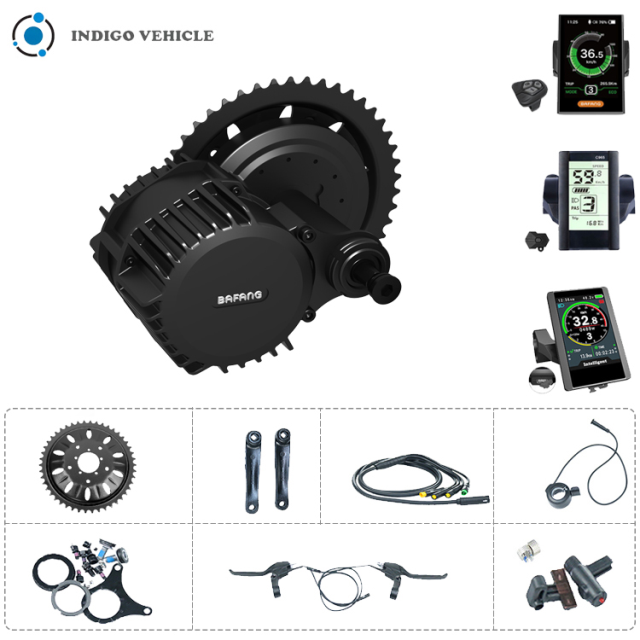

Product list

c18(001)

Product Paramenters

Motor	48v 1000w

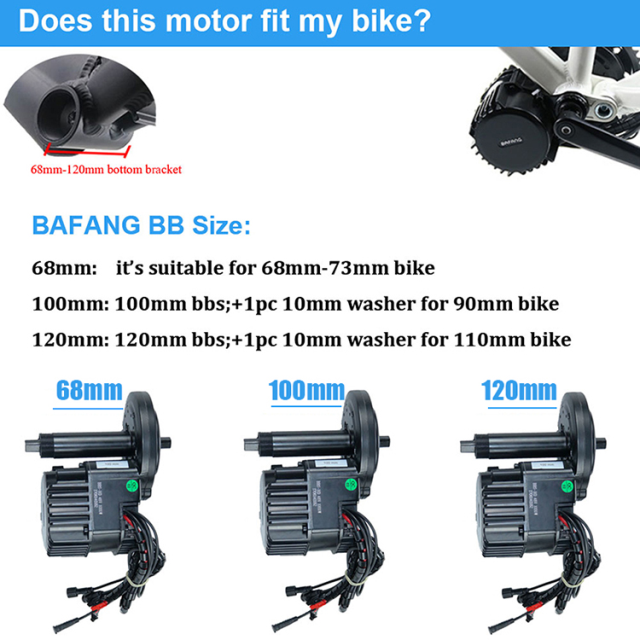

Bracket bottom length	68/100/120mm
No Load Speed(RPM)	160
Load Speed(RPM)	140-150
MAX Torque	160N.m
Efficiency (%)	≥ 85%
Certificate	ROHS,CE
Operating Temperature	-20-45℃
chain wheel	42T 46T available
Gross weight(kg)	10
Package size	522525cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

Electric kits for bicycles

Details Images

Why do some electric vehicles still use mid motors?

The core reason is "heat dissipation." When the motor rotates at high speed, it will release a lot of heat. The advantages of the mid motor are manifested. Because it is an independent power structure, it is generally placed on the chassis of the car or side-mounted at the rear. The ventilation and heat dissipation are better than those of the in-wheel motor. Therefore, the central motor is more suitable for high-speed driving.

The more technologically advanced mid-mounted motor, which is a combination mechanism of internal gears, uses multiple clutch gears inside the motor housing to form a variable-speed ratchet, which increases its output torque and has higher load and climbing power. And its torque sensor is also more sensitive, sensing changes in the pedaling force of the crank, which will directly act on the central axis and accelerate faster.

Since the overall basic speed change and transmission structure of the bicycle has not been changed, the rider can also cooperate with the vehicle's original mechanical rear speed change mechanism and use it in conjunction with the central assist to achieve higher riding efficiency.
