Electric bicycle conversion kit bafang bbs02 mid drive motore 500w ebike conversion kit

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

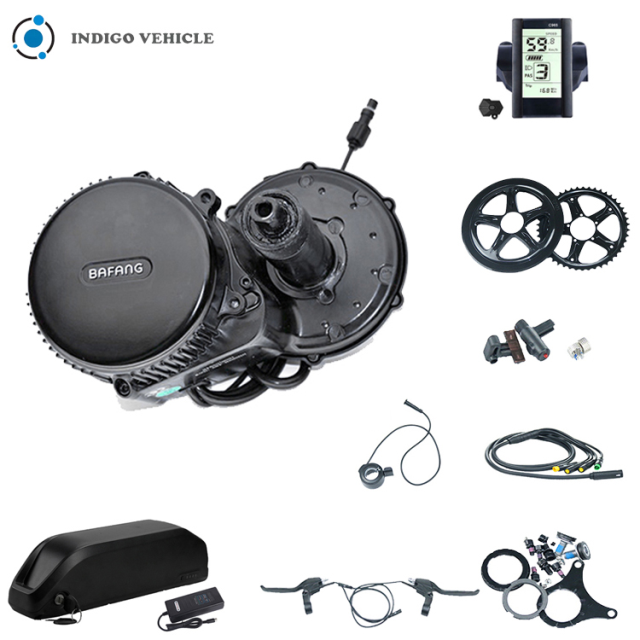

Product list

c18(001)

1.Lithium Battery

48V:24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	126
Load Speed(RPM)	118
MAX Torque	100N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

Details Images

This product adopts concentric coaxial technology, makes reasonable use of the effective space of the bicycle, is beautiful, stylish, stable, safe, and can be easily shifted. The mid-drive power unit adopts super-noise design technology, which runs smoothly and has low noise. The product is certified by the European Union and is sold in Europe and the US market.

The motor is responsible for the direct mechanical transmission, acting on the force part of the vehicle pedaling, and its electric energy-kinetic energy conversion rate is generally above 80%. The clutch ratchet designed inside the central motor can completely separate the motor from the central shaft ratchet when the power is off, and there is no magnetic resistance. Therefore, you can ride unimpededly even when you are exercising and riding or when the battery is exhausted. Row.

As a high-tech enterprise, the company introduces information management software such as ERP and CRM to make information management intelligent; the company semi-automatic production line is moving towards intelligent production; the company independently develops bottom bracket torque/speed sensors, becoming one of the few internationally equipped with torque sensors One of the companies with independent production capabilities; continuous original design capabilities and lean manufacturing capabilities have significantly improved the company's industry reputation and brand awareness.
