Description

Electric bicycle conversion kit bafang bbs02 mid drive motor bafang 48v 500w

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

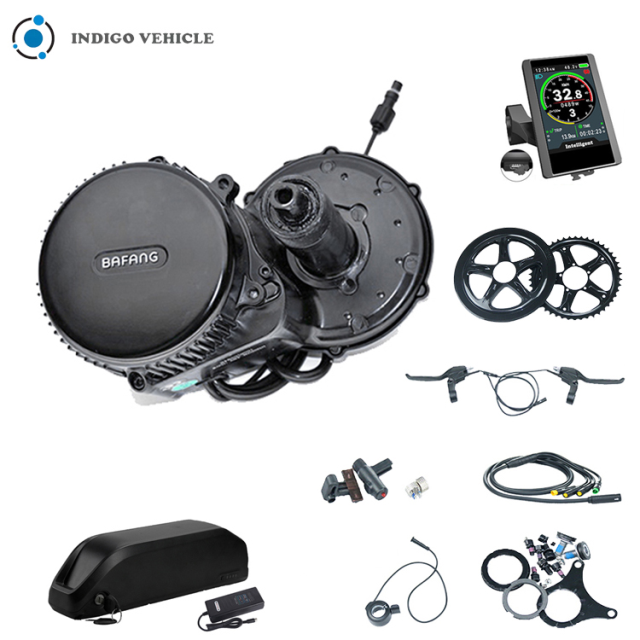

Product list

c18(001)

1.Lithium Battery

48V:20.3AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	126
Load Speed(RPM)	118
MAX Torque	100N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	36890141mm

500w mid drive

The biggest advantage of a mid electric bicycle is that its battery, motor and transmission box are all located near the center axis of the bicycle. Therefore, its center of gravity is well balanced, its center of gravity is low, and there is little resistance during riding.

Details Images

The more technologically advanced mid motor, which is a combination mechanism of internal gears, uses multiple clutch gears inside the motor housing to form a variable-speed ratchet, which increases its output torque and has higher load and climbing power. And its torque sensor is also more sensitive, sensing changes in the pedaling force of the crank, which will directly act on the central axis and accelerate faster.

Since the overall basic speed change and transmission structure of the bicycle has not been changed, the rider can also cooperate with the vehicle's original mechanical rear speed change mechanism and use it in conjunction with the central assist to achieve higher riding efficiency.

Hangzhou Indigo Vehicle has established a recognized supplier of green energy products, such as electric bicycles, lithium battery packs, electric bicycle motors, hub motors, electric scooters, various drive controllers and motors. We insist on using high-quality materials and the latest technology in our products to provide high-performance, feature-rich and low-cost solutions for personal electric transportation products and industrial applications.

We support online factory inspections or on-site inspections, provide sample services, and have professional technicians explain product details to customers, solve customers’ doubts, explain installation steps and precautions to customers in detail, support one piece of wholesale and online purchase, motors and batteries Provide a one-year warranty and serve every customer carefully.
