Electric Bike Kits

Motor

48v500w

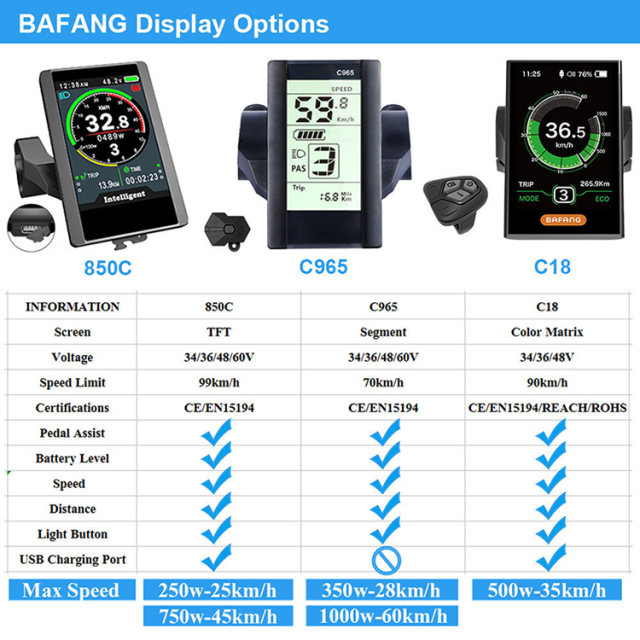

Display

C965

Lots: $339/ Piece

Wholesale Price ( Piece ):

Quantity:

Piece

Shipping to

Description

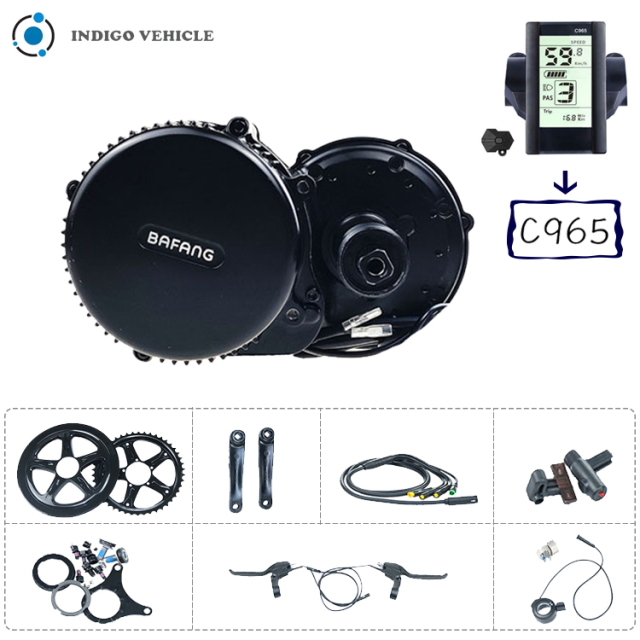

Electric bicycle conversion kit bafang bbs02 mid drive motor electric bike kits

euwarehosue(001)

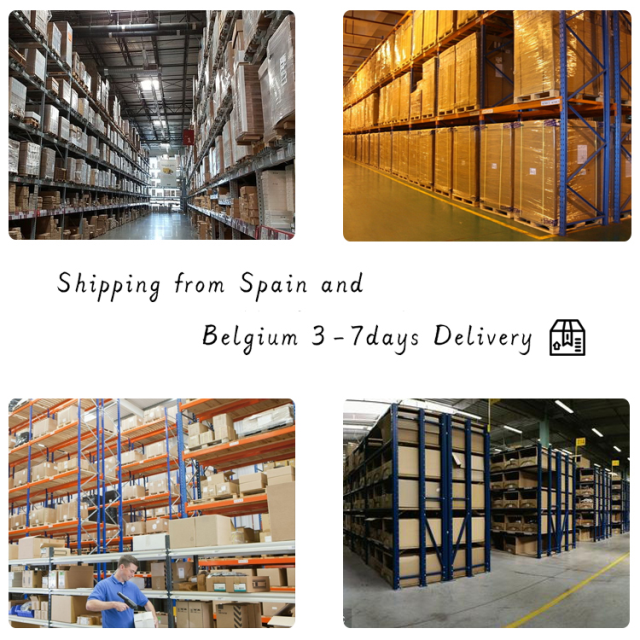

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

Product Paramenters

Motor	48v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	126
Load Speed(RPM)	118
MAX Torque	100N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	8
Package size	250-750W: 322525cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

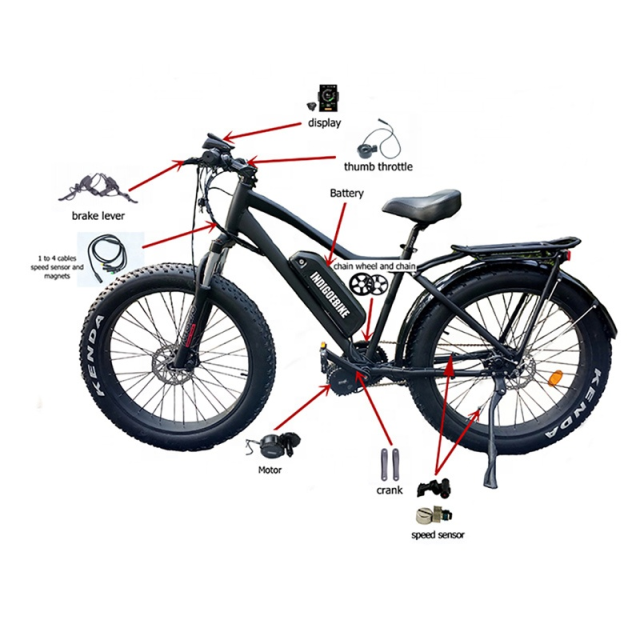

Electric bike kits

Details Images

The advantage of the mid motor is that it can maintain the front and rear balance of the electric vehicle to the greatest extent, and will not affect the shock absorption. The motor is less impacted by the road on the bumpy road.

Take the user as the center, meet the needs of users as the principle, and implement family-oriented services. React quickly and act immediately. In a short time, use effective methods to provide users with satisfactory services.

As a high-tech enterprise, the company introduces information management software such as ERP and CRM to make information management intelligent; the company semi-automatic production line is moving towards intelligent production; the company independently develops bottom bracket torque/speed sensors, becoming one of the few internationally equipped with torque sensors One of the companies with independent production capabilities; continuous original design capabilities and lean manufacturing capabilities have significantly improved the company's industry reputation and brand awareness.
