Description

Electric bicycle conversion kit bafang bbs02 mid drive motor electric conversion kit for bicycle

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

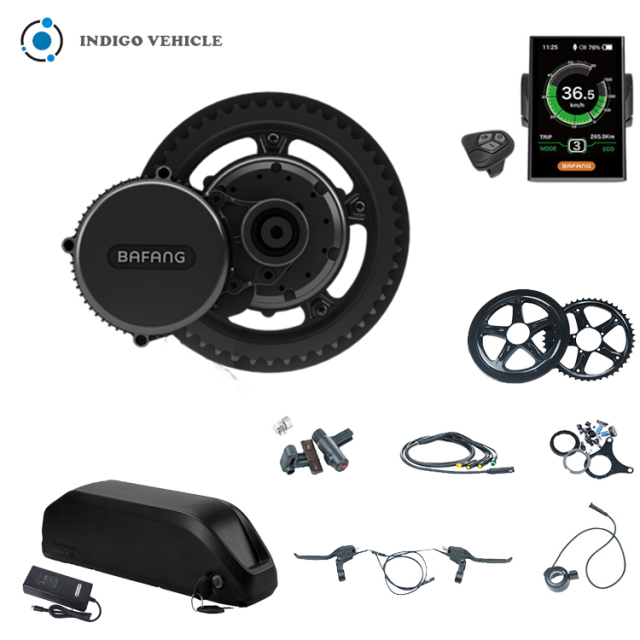

Product list

c18(001)

1.Lithium Battery

48V:13AH-CN/16AH-LG/17.5AH-Samsung/17.5AH-CN/20.3AH-Samsung/24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	126
Load Speed(RPM)	118
MAX Torque	100N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Display	C18
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

Electric conversion kit for bicycle

Details Images

The mid motor is the motor placed in the middle of the frame. The advantage of the mid motor is that it can maintain the front and rear weight balance of the vehicle as much as possible, and will not affect the action of the shock absorber. The road impact on the motor is also smaller, the integration is high, and the motor shape is more concise; on the ground with poor road conditions It’s better than the hub motor in terms of handling, stability, and passability. Under the same battery capacity, the unique power transmission structure and drive mode of the mid-mounted motor make its power and endurance better than the hub motor. The motor performs better.
